EVE 230Ah LiFePO4 Prismatic Battery Cells

$384.00

Note: The price for 4pcs. For pricing on larger quantities and optimizations, please contact us.

100% Brand New Grade EVE 230Ah LiFePO4 Prismatic Battery Cells

1. Reliable LiFePO4 Battery Provider: Our LiFePO4 battery cells have exceptional quality since they are manufactured by EVE, known for more stable performance & greater power. Highest-level safety based on UL Testing Certificate and MSDS for the battery,100% safe, non-toxic, renewable energy.

2. Perfect for DIY Off-Grid Solar Power Application: EVE 230Ah LiFePO4 Prismatic Battery Cells can make the connection in parallels and series, which will be perfect for off-grid solar power systems and outdoor applications such as backup power, RV, camping, marine boat, etc. You can DIY your own battery pack with our battery cells, if you are a beginner, we will also provide free instruction for you.

3.10-Year Life/5000+ Cycles: Our LiFePO4 Battery has better performance than the acid-lead battery at the same capacity, which can provide more power in daily use. On the other hand, Our rechargeable battery provides 3500+ cycles (10 times longer), nearly a decade lifetime compared to 200-500 cycles & a 3-year lifetime in a lead-acid battery. 2000-3000 cycles longer than other LiFePO4 batteries on the market.

4.Full Capacity & Balanced/Matched: A full charge on LiFePO4 cells can run mostly appliances for a couple of days, like running an 80W refrigerator nonstop for 42hrs ( about 2-3 days ). Our LiFePO4 battery has a great 280Ah capacity with a very low self-discharge rate and capacity loss, which has 40% more powerful than the same capacity completed battery pack. With efficient charging and easy installation, less money for more power.

Categories: , Tag:
Item Performance
Brand EVE
Battery Model LF230
Cell Grade Brand New Grade A Cell
Chemistry Lithium Iron Phosphate (LiFePO4 or LFP)
Nominal Capacity 230Ah
Nominal Voltage 3.2V
Operational Voltage 2.5V-3.65V
AC Impedance Resistance ≤0.3mΩ
Weight 4.11±0.1kg
Dimensions (mm) 207.3*173.9*54.0±0.5mm
Terminal M6 Laser Welding Stud
Cycle Life ≥3500 Cycles (Retention: ≥80%DOD)
Standard Charge and Discharge Charge/Discharge Current ≥0.5C/0.5C
Standard Charge and Discharge Charge/Discharge Cut-off Voltage 3.65V/2.5V
Continuous Charge/Discharge Current 1C/1C
Pulse Charge/Discharge Current(30s) 2C/2C
Recommended SOC Window 10%~90%
Charging Temperature 0℃~60℃
Discharging Temperature -30℃~60℃

Product Feature

  • Intelligent factory design, high-performance consistency.
  • Square aluminum shell structure, and high-precision explosion-proof valve, high safety performance.
  • Low internal resistance, high discharge rate and stable discharge platform.
  • Long cycle life, the capacity retention ratio exceeds 80% after 3500 cycles at 1C/1C.
  • Green, the product conforms to GB, UN and ROHS directive.

Product Application And Connection

Electric vehicle, electric bikes, scooters, boats, submarines, golf carts, communications, energy storage, Intelligent network, etc

LiFePO4 Prismatic Battery Cells Application and Connection-Lightning Supply

DIY Suggestion

LiFePO4 Prismatic Battery Cells DIY Suggestion-Lightning Supply

What’s In Your Box?

LiFePO4 Prismatic Battery Cells 5 Protections of Cell Packaging-Lightning Supply

NOTE!

1. One Cell will come with one set busbar, bolt, and washer for free. (e.g. 4 Cells will come with 4 pcs(busbars + bolts + washers) .
2. Each cell shall be used under the strict monitor, control, and protection by the BMS.
3. Before the first use, always charge the cells to full voltage.

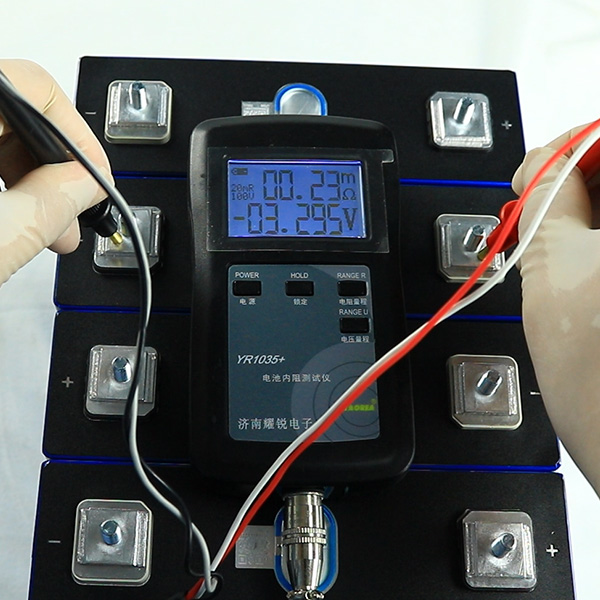

4. We will match (capacity, voltage, resistance) all cells before delivery.
5. The battery is suitable for DIY lovers with experience.
