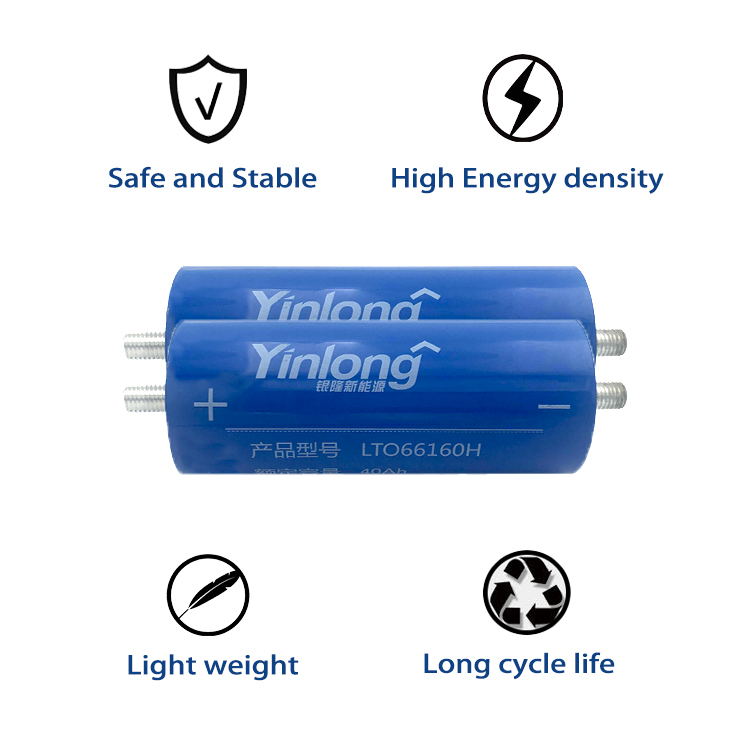

YinLong 35Ah Lithium titanate Battery Cells
Note: The price for 6pcs. For pricing on larger quantities and optimizations, please contact us.
100% Brand New Grade YinLong 35Ah lithium titanate battery Cells
1.High-capacity: YinLong 35Ah lithium titanate battery cells offer a high capacity for energy storage, making them suitable for various applications.
2.Long cycle life: These battery cells are designed to last for a long time, with a cycle life of up to 30,000 cycles.
3.Fast charging: YinLong 35Ah lithium titanate battery cells can be charged quickly, with a charging time of fewer than 15 minutes to reach 80% capacity.
4.Wide temperature range: The cells can operate in a wide temperature range, from -50°C to 65°C, making them suitable for use in various environments.
5.Safe and reliable: YinLong 35Ah lithium titanate battery cells are built with safety and reliability in mind, with features such as overcharge and over-discharge protection to ensure safe operation.
|Cell Grade||Brand New Grade A Cell|
|Chemistry||The lithium-titanate-oxide (LTO)|
|Recommended Charging Voltage||2.8V|
|Recommended Discharge Voltage||1.5V|
|Cycle Performance||≥25000 Cycles|
LTO material has higher electric potential with lithium metal,avoiding lithium dendrite during the process of battery overcharging,and has better safety and stability.Meanwhile,it has three-dimensional lithium-ion transmission channel,which can charge and discharge at high rate;full charging and sicharging from extremely low temperature-50°C to ultra-high temperature 60°C can be realized.
1. Fast Charing and Discharging
The ratio property of the battery material is determined by the ionic conductivity and the electronic conductivity.
The lithium ion diffusion coefficient of Lithium titanate material is several hundred times higher than that of graphite, which
can make the battery have 10C high rate charge-discharge performance.
Graphite carbon negative electrode series, carbon negative electrode, potential and lithium standard potential is very close, battery overcharge, Metal Lithium May in carbon negative electrode surface precipitation and formed Lithium Dendrite, Short circuit and other safety problems.
The graphite carbon anode series formed SEI (solid electrolyte, plasma membrane) at the interface of electrolyte when it was working, and the Sei film had poor high temperature stability. However, lithium titanate materials do not form Sei film in the traditional sense, so the stability is better.
3. Wide Voltage（-50℃ ~ +60℃）:
High Lithium Ion diffusivity makes lithium titanate charge and discharge normally at low temperature, and high temperature stability, which makes lithium titanate safe and safe at high temperature.
The lithium titanate battery can be fully charged and discharged in a wide temperature range of-50 °C ~ + 60 °C. Batteries in other lithium-ion chemical systems can hardly be charged at temperatures below zero.
4.Longer Lifespan(Lifecycles≥25000 times):
The structure of Lithium titanate is spinel. The lattice parameter of Lithium titanate increases from 0.836 to 0.837 ΜM (1 nm 10ΜM) , the volume change is only 0.3% , and the structure of lithium titanate has little change Good cycle stability.
LTO Battery Widely Application
Used in Engine starting battery, electric bicycle/motorcycle/scooter,
golf trolley/carts, power tools..UPS, Solar and wind power system, RV, caravan…
